Product code: OR1407
Available quantity Available
| Product code | OR1407 |
|---|---|
| Pressure ratio | 50:1 |
| Air pressure | 6–8 bar (0.6–0.8 MPa) |
| Grease pressure | 300–400 bar (30–40 MPa) |
| Catalogue flow | 0–0.85 l/min |
| Hose | 6 m × Ø6 mm |
| Drum cover | Ø325 mm |
| Follower plate | Ø280 mm |
| Air cylinder diameter | 70 mm |
| Weight | 16 kg |
OR1407 dispenses grease using compressed air.

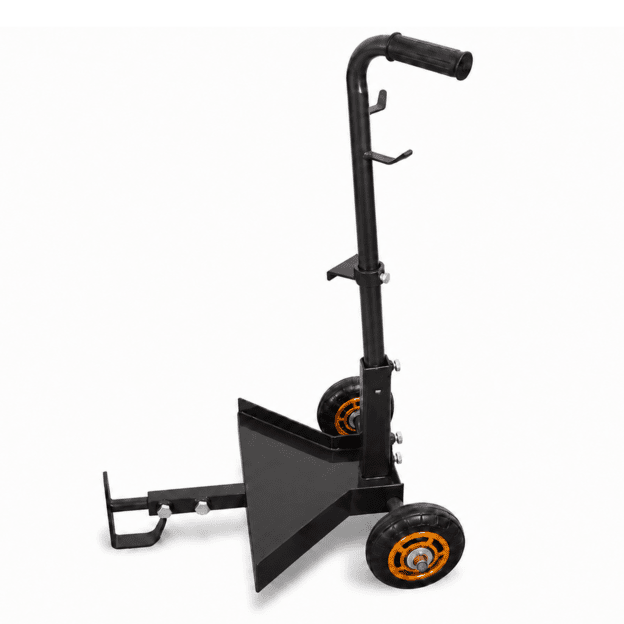

The trolley helps reposition the unit while the 6 m hose provides access to lubrication points.
The ratio describes pressure multiplication, not litres per minute. Set the air regulator within the pump and all grease-line component limits.
Match cover and follower plate diameters to the container's internal dimensions. A grease quantity in kilograms alone does not establish mechanical compatibility.
Inspect the grease gun and hose before use. Shut off air and release residual pressure under the equipment instructions before disconnecting.
