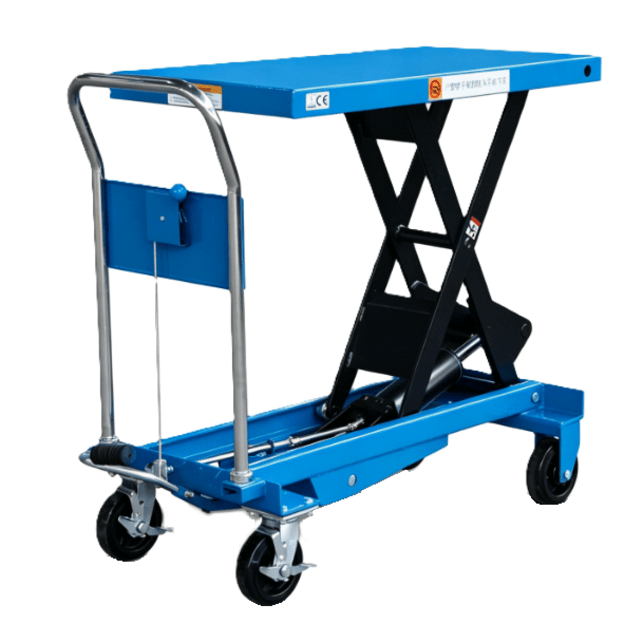

Hydraulic lift table trolley T84100, 1000 kg

Discount -1%
In Warehouse

Product code: T84100

Available quantity Available

Fast Delivery

Technical specifications

ModelT84100
Lifting capacity1000 kg
Minimum platform height390 mm
Maximum platform height1000 mm
Platform dimensions1000 × 510 × 55 mm
Lifting mechanismHydraulic
Wheel dimensionsØ 150 × 40 mm
Handle height from floor980 mm
Listed product weight80 kg
Lifting controlHydraulic foot pedal
Lowering controlHand lever
Frame materialSteel
€54900 €55176 inc VAT
This item has a discount and you save - €276
Have any questions about this item? Ask

The T84100 is a hydraulic lift table trolley for raising, lowering and moving loads up to 1000 kg around the workplace. It can be used for handling suitably supported parts, equipment and other loads in workshops, warehouses and production areas.

The platform height range is 390–1000 mm, and its listed dimensions are 1000 × 510 × 55 mm. Adjust the working height according to the task, load stability and position of adjacent work surfaces.

Load support and capacity

The 1000 kg capacity applies under the load distribution conditions specified in the actual trolley instructions. Position the load securely with its centre of gravity over the platform. Avoid concentrated or overhanging loads unless permitted by the manufacturer.

Raising and lowering the platform

A hydraulic foot pedal raises the platform, and a hand lever controls lowering. Check load clearance before changing height. Keep hands and feet clear of the moving lifting mechanism.

Moving around the workplace

The listed Ø 150 × 40 mm wheels and 980 mm handle height help move the trolley between workstations. Travel on a firm, level surface with the platform in the transport position specified by the instructions. Do not lift or transport loads on a slope.

Inspection and maintenance

Inspect the hydraulic system for leaks and check the platform, wheels and fasteners before use. Follow the maintenance instructions and secure the platform against unexpected lowering before servicing. The trolley is intended for loads; do not use it to lift people.
