Electric wire rope hoist LOTA Industries LOTAK15TX30, 750/1500 kg, with trolley

Discount -20%
In Warehouse

Product code: LOTAK15TX30

Available quantity Available

Fast Delivery

Technical specifications

Model LOTAK15TX30
Manufacturer LOTA Industries
Capacity – single line 750 kg
Capacity – double line with pulley 1500 kg
Lifting speed – single line 14 m/min
Lifting speed – double line 7 m/min
Motor power 4000 W
Power supply 220 V
Trolley motor power 370 W
Rope length 30 m
Rope diameter Ø 7 mm
Listed weight 59 kg
€39900 €50000 inc VAT
This item has a discount and you save - €10100
Have any questions about this item? Ask
Manufacturer: LOTA Industries

The LOTAK15TX30 is an electric wire rope hoist for raising and lowering loads in a suitably equipped workshop, warehouse or other work area. Single-line capacity is 750 kg; double-line capacity with a pulley block is 1500 kg.

Select the 4000 W hoist according to the load and available workspace. The listed rope length is 30 m; check the actual lifting height for each configuration in the model instructions.

Rope configuration and lifting speed

Listed lifting speed is 14 m/min with a single line and 7 m/min with a double line. The higher 1500 kg capacity requires the correct pulley configuration for this model. Rope length is not the lifting height for every configuration.

Installation and work area

A trolley with a separate 370 W motor is listed as included. Check the beam profile, trolley adjustment limits and capacity of the complete supporting structure before installation.

Operation and maintenance

Lift vertically without side pulling. Inspect the rope, hooks, mountings and stopping functions before use. Follow the rating plate and instructions for operating time and cooling pauses. The hoist is for loads; do not use it to lift people.

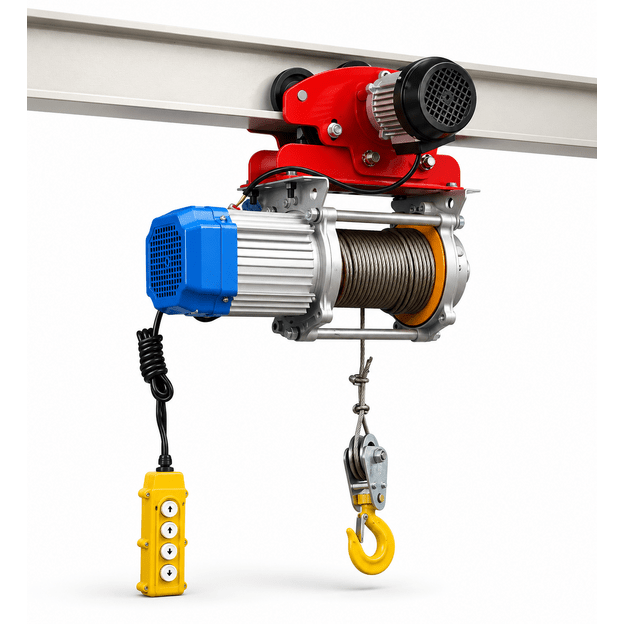

Image for illustration purposes.
