Electric pulling winch T-MAX ATWPRO2500, 2500 lb, 12 V

In Warehouse

Product code: ATWPRO2500

Available quantity Available

Fast Delivery

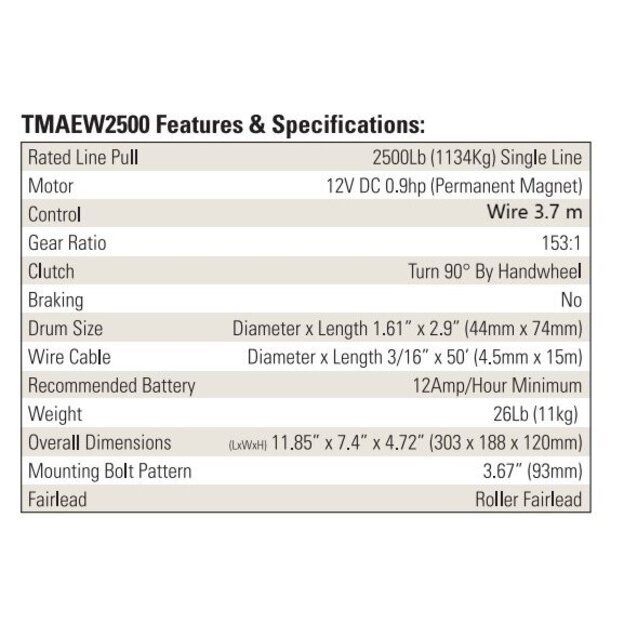

Technical specifications

ModelATWPRO2500
ManufacturerT-MAX
Listed rated line pull2500 lb
Power supply12 V
Motor0.90 hp, permanent magnet
Gear ratio153:1
BrakeNo automatic drum brake
Drum dimensionsØ 44 × 74 mm
Mounting pattern93 mm
Overall dimensions303 × 120 × 188 mm
Rope length15 m
Rope diameterØ 4.5 mm
Listed weight11 kg
€20909 inc VAT
Have any questions about this item? Ask
Manufacturer: T-MAX

The ATWPRO2500 is a electric pulling winch with a listed rated line pull of 2500 lb. It is intended for pulling in a correctly designed and mounted system; this pulling rating is not a vertical lifting capacity.

Assess the 15 m rope and mounting data together with the pulling direction and installation position. Consult the ATWPRO2500 instructions for permitted duty and load ratings by rope layer.

Rope and guidance

The listed rope is 4.5 mm in diameter and 15 m long. Use a fairlead suitable for the actual rope type, avoid sharp or damaged contact surfaces and inspect the rope before each task.

Power supply and mounting

Supply voltage is 12 V. Select the battery, cables and protection according to the instructions and loaded current demand. The mounting base and complete pulling system must withstand the intended forces.

Load and operating limits

Line pull is not a suspended-load capacity. The catalogue specifies no automatic drum brake for this model. Stay clear of the tensioned rope and follow the manufacturer's load and duty limits. A brake does not authorise lifting people or suspended loads.

Specification
Manufacturer T-MAX
