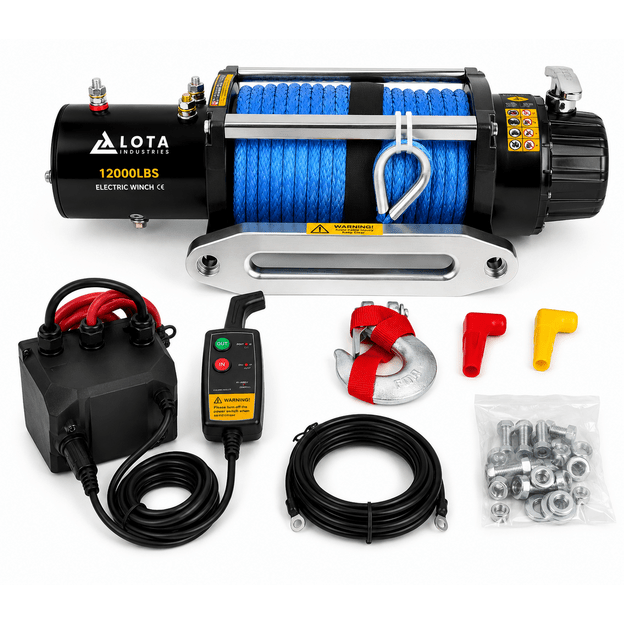

Electric pulling winch LOTA Industries LOTAW12000LBS, 12000 lb, 12 V DC

Discount -36%
In Warehouse

Product code: LOTAW12000LBS

Available quantity Available

Fast Delivery

Technical specifications

ModelLOTAW12000LBS
ManufacturerLOTA Industries
Listed rated line pull12000 lb
Power supply12 V DC
Motor6 hp / 4.5 kW, series wound
Gear ratio265:1
Gearbox3-stage planetary
BrakeAutomatic in-drum
ControlWired and remote
Drum dimensionsØ 64 × 224 mm
Mounting pattern254 × 114.3 mm
Overall dimensions614 × 164 × 218 mm
Listed recommended battery≥650 CCA
Power cable gauge2 gauge
ClutchSliding ring gear
Rope length26.8 m
Rope diameterØ 8.5 mm
Rope typeSynthetic rope
Listed weight34 kg
Listed gross weight36 kg
€28900 €45000 inc VAT
This item has a discount and you save - €16100
Have any questions about this item? Ask
Manufacturer: LOTA Industries

The LOTAW12000LBS is a electric pulling winch with a listed rated line pull of 12000 lb. It is intended for pulling in a correctly designed and mounted system; this pulling rating is not a vertical lifting capacity.

Assess the 26.8 m rope and mounting data together with the pulling direction and installation position. Consult the LOTAW12000LBS instructions for permitted duty and load ratings by rope layer.

Rope and guidance

The listed rope is 8.5 mm in diameter and 26.8 m long (synthetic rope). Use a fairlead suitable for the actual rope type, avoid sharp or damaged contact surfaces and inspect the rope before each task.

Power supply and mounting

Supply voltage is 12 V DC. Select the battery, cables and protection according to the instructions and loaded current demand. The mounting base and complete pulling system must withstand the intended forces.

Load and operating limits

Line pull is not a suspended-load capacity. Stay clear of the tensioned rope and follow the manufacturer's load and duty limits. A brake does not authorise lifting people or suspended loads.

Image for illustration purposes.
