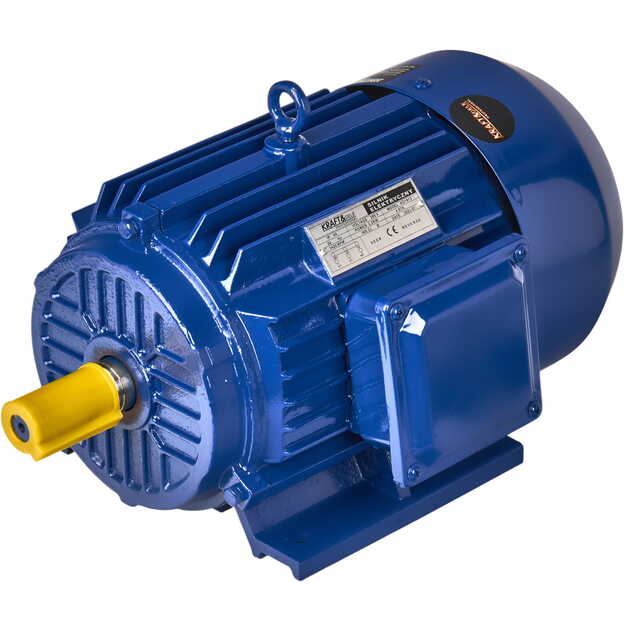

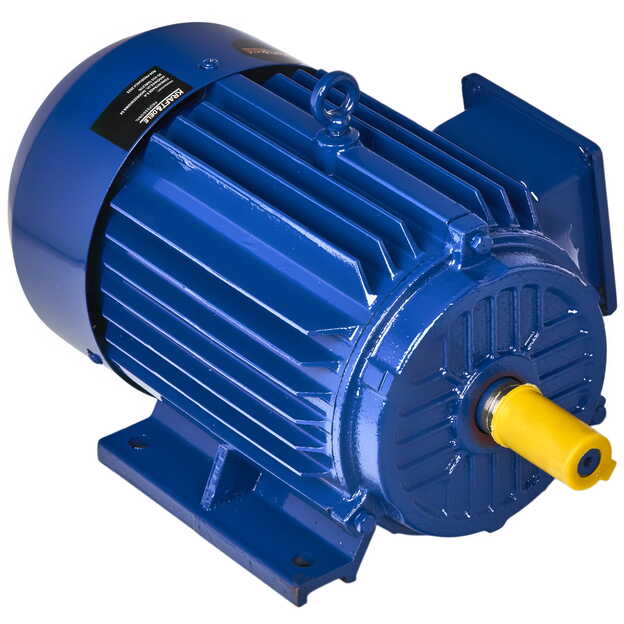

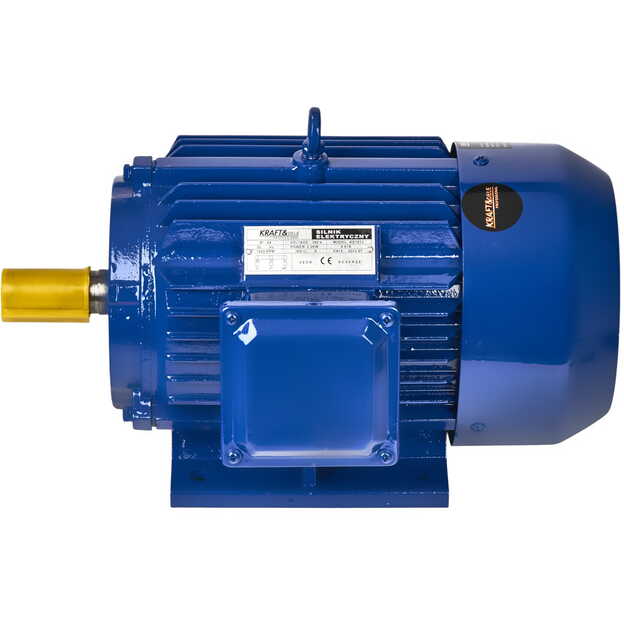

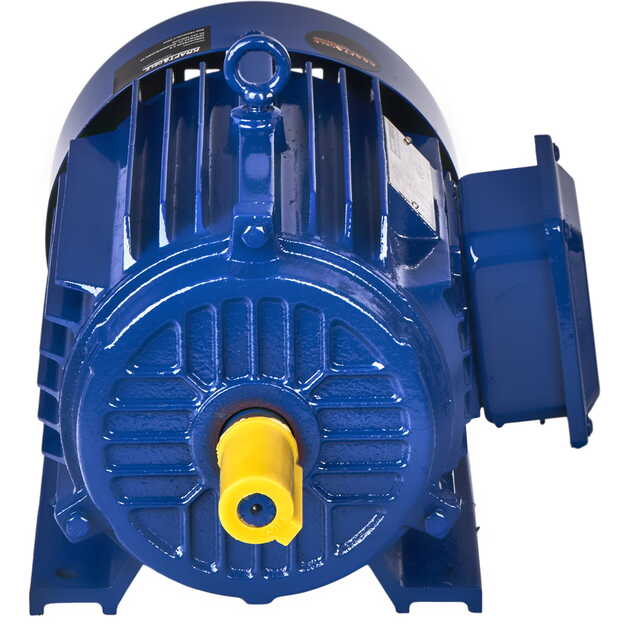

KRAFT&DELE KD1820 three-phase electric motor, 5.5 kW, 380 V, 2880 rpm

In Warehouse

Product code: KD1820

Available quantity Available

Fast Delivery

Technical specifications

BrandKRAFT&DELE
ModelKD1820
TypeThree-phase electric motor
Supply voltage380 V
Frequency50 Hz
Power5500 W (5.5 kW)
Current10.7 A
Speed2880 rpm
Mounting hole spacing220 × 140 mm
Shaft diameter38 mm
Shaft length75 mm
Key dimensions50 × 8 mm
Weight52.5 kg
€22900 inc VAT
Have any questions about this item? Ask
Manufacturer: Kraftdele

KRAFT&DELE KD1820 is a three-phase electric motor for mechanical drive equipment. Listed power is 5.5 kW, supply is 380 V / 50 Hz and speed is 2880 rpm.

Select the motor to match the driven equipment’s power and speed requirements. When replacing an existing motor, also compare its supply, shaft and mounting arrangement.

Applications and drive selection

The 5.5 kW and 2880 rpm combination suits equipment requiring these drive parameters. For a compressor, pump or machine tool, check the specific mechanism’s requirements before selecting the motor.

Shaft and mounting

This model has a 38 mm shaft diameter and a 75 mm shaft length. Mounting hole spacing is 220 × 140 mm. Match the coupling or pulley and mounting base to the dimensions of this motor and the driven machine.

Supply and supplied equipment

The listed supply voltage is 380 V. Connection and protective-device selection must follow the individual motor’s rating plate and instructions. The product is the KRAFT&DELE KD1820 electric motor; other drive components are not specified as included.
