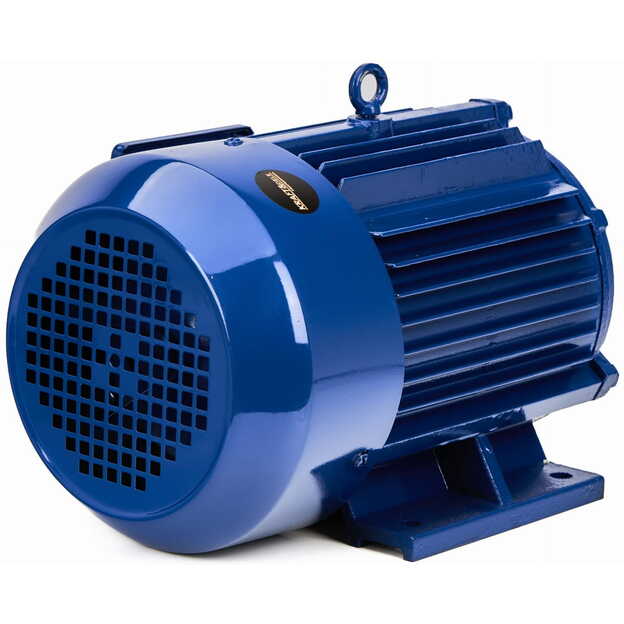

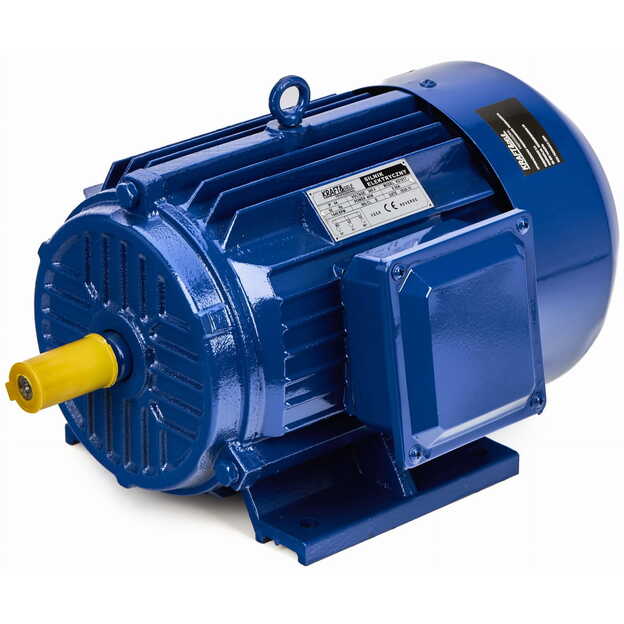

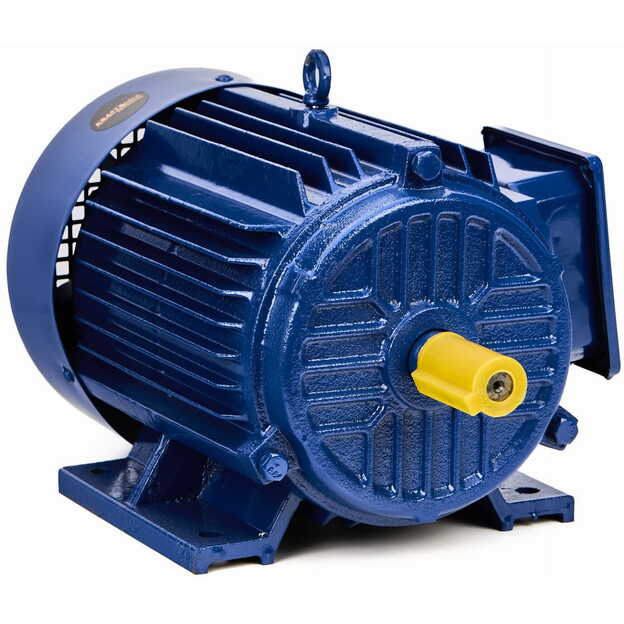

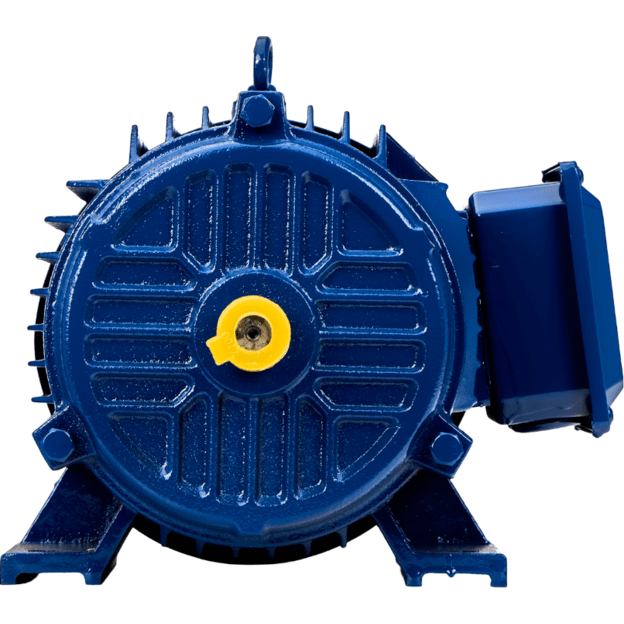

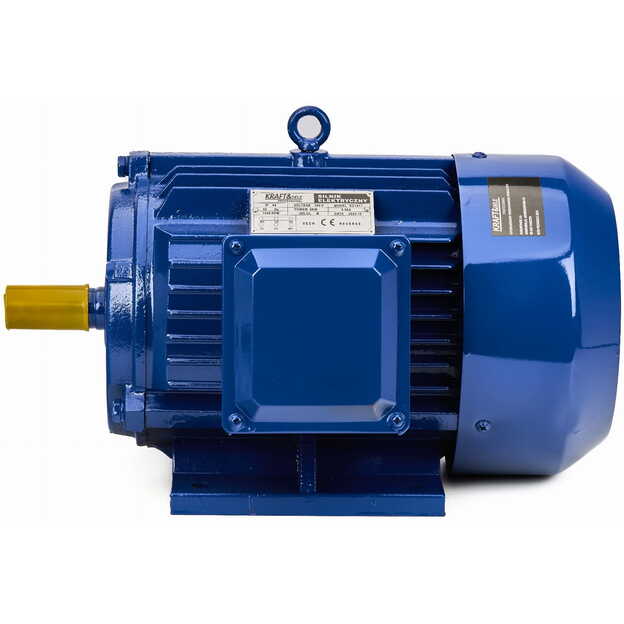

KRAFT&DELE KD1817 three-phase electric motor, 4 kW, 380 V, 1440 rpm

Discount -23%
In Warehouse

Product code: KD1817

Available quantity Available

Fast Delivery

Technical specifications

BrandKRAFT&DELE
ModelKD1817
TypeThree-phase induction motor
Supply voltage380 V
Frequency50 Hz
Power4000 W (4 kW)
Current8.56 A
Speed1440 rpm
Mounting hole spacing190 × 140 mm
Shaft diameter28 mm
Shaft length50 mm
Key dimensions38 × 7 mm
Weight39 kg
€15699 €20449 inc VAT
This item has a discount and you save - €4750
Have any questions about this item? Ask
Manufacturer: Kraftdele

KRAFT&DELE KD1817 is a three-phase electric motor for mechanical drive equipment. Listed power is 4 kW, supply is 380 V / 50 Hz and speed is 1440 rpm.

Select the motor to match the driven equipment’s power and speed requirements. When replacing an existing motor, also compare its supply, shaft and mounting arrangement.

Applications and drive selection

The 4 kW and 1440 rpm combination suits equipment requiring these drive parameters. For a compressor, pump or machine tool, check the specific mechanism’s requirements before selecting the motor.

Shaft and mounting

This model has a 28 mm shaft diameter and a 50 mm shaft length. Mounting hole spacing is 190 × 140 mm. Match the coupling or pulley and mounting base to the dimensions of this motor and the driven machine.

Supply and supplied equipment

The listed supply voltage is 380 V. Connection and protective-device selection must follow the individual motor’s rating plate and instructions. The product is the KRAFT&DELE KD1817 electric motor; other drive components are not specified as included.
