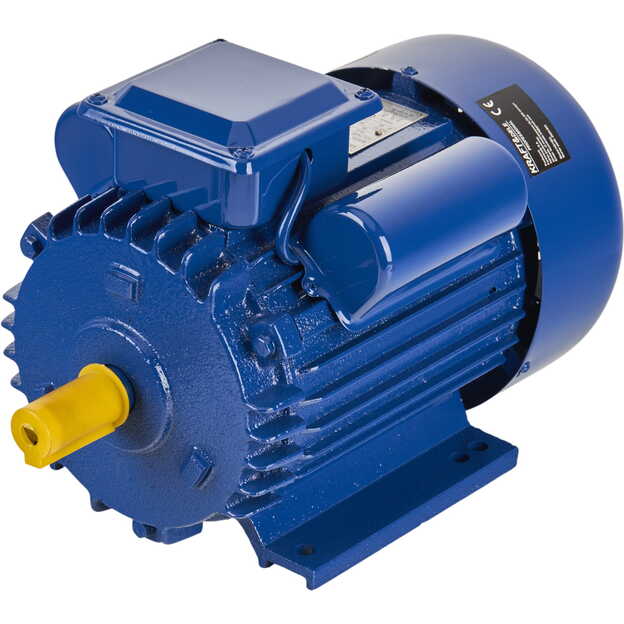

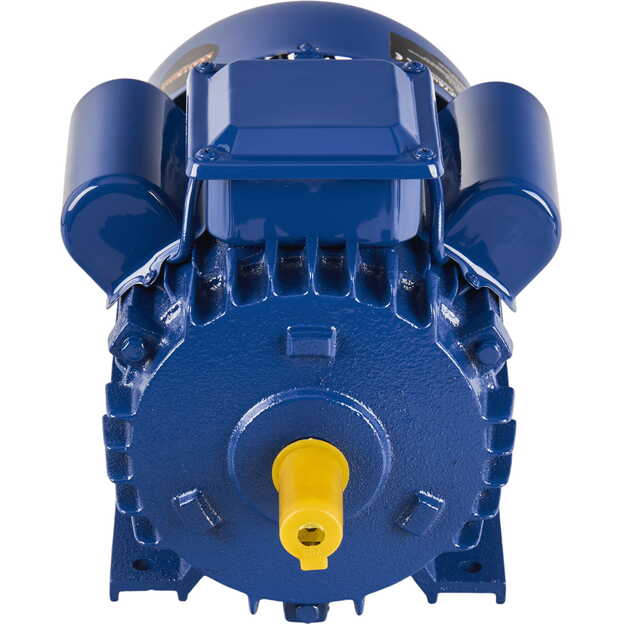

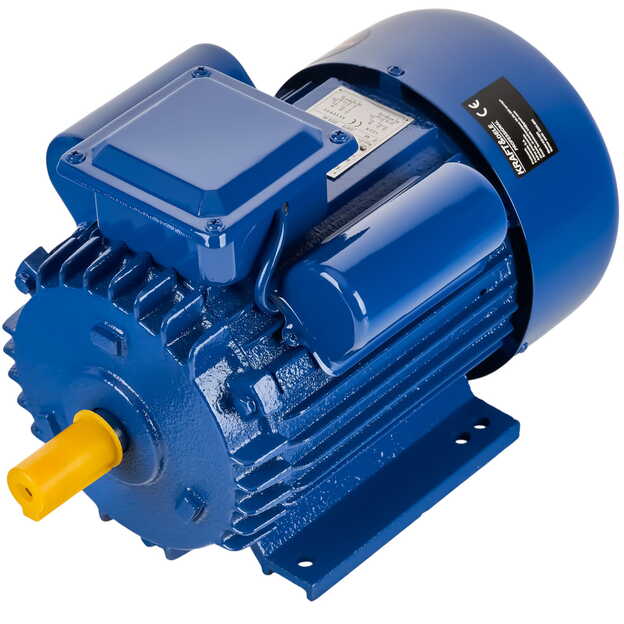

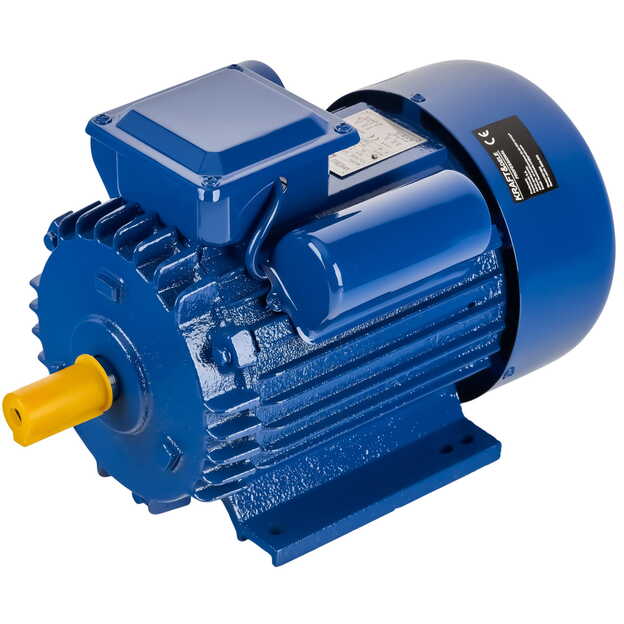

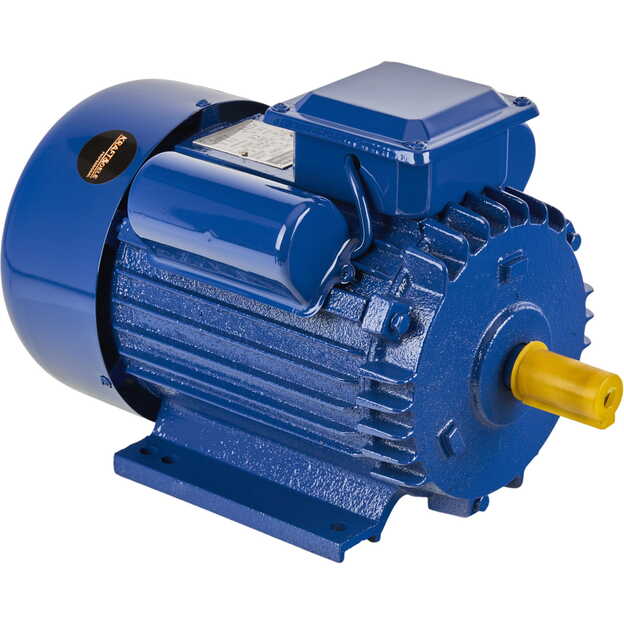

KRAFT&DELE KD1804 single-phase electric motor, 3 kW, 220 V, 2810 rpm

Discount -29%
In Warehouse

Product code: KD1804

Available quantity Available

Fast Delivery

Technical specifications

BrandKRAFT&DELE
ModelKD1804
TypeSingle-phase electric motor
Supply voltage220 V
Frequency50 Hz
Power3000 W (3 kW)
Current18.2 A
Speed2810 rpm
Mounting hole spacing150 × 120 / 140 mm
Shaft diameter24 mm
Shaft length45 mm
Key dimensions28 × 7 mm
Weight22.5 kg
€11999 €16819 inc VAT
This item has a discount and you save - €4820
Have any questions about this item? Ask
Manufacturer: Kraftdele

KRAFT&DELE KD1804 is a single-phase electric motor for mechanical drive equipment. Listed power is 3 kW, supply is 220 V / 50 Hz and speed is 2810 rpm.

Select the motor to match the driven equipment’s power and speed requirements. When replacing an existing motor, also compare its supply, shaft and mounting arrangement.

Applications and drive selection

The 3 kW and 2810 rpm combination suits equipment requiring these drive parameters. For a compressor, pump or machine tool, check the specific mechanism’s requirements before selecting the motor.

Shaft and mounting

This model has a 24 mm shaft diameter and a 45 mm shaft length. Mounting hole spacing is 150 × 120 / 140 mm. Match the coupling or pulley and mounting base to the dimensions of this motor and the driven machine.

Supply and supplied equipment

The listed supply voltage is 220 V. Connection and protective-device selection must follow the individual motor’s rating plate and instructions. The product is the KRAFT&DELE KD1804 electric motor; other drive components are not specified as included.
