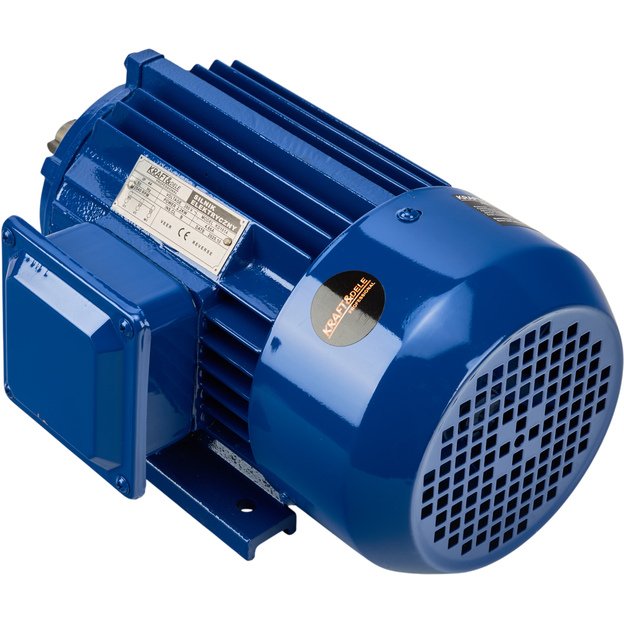

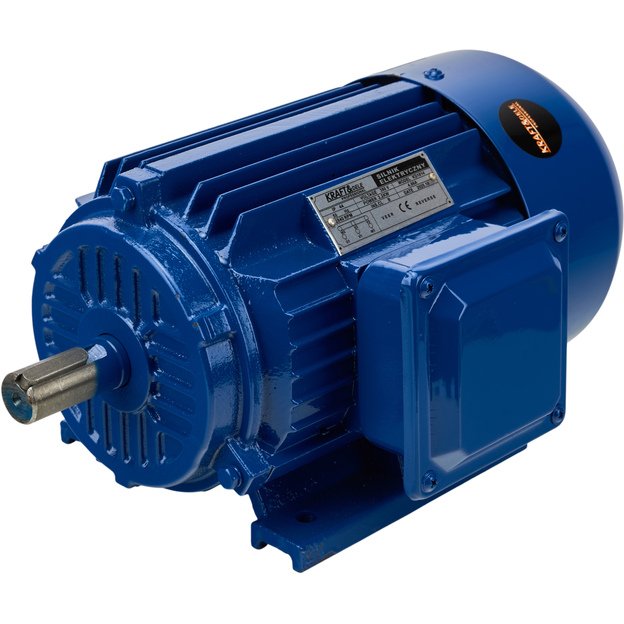

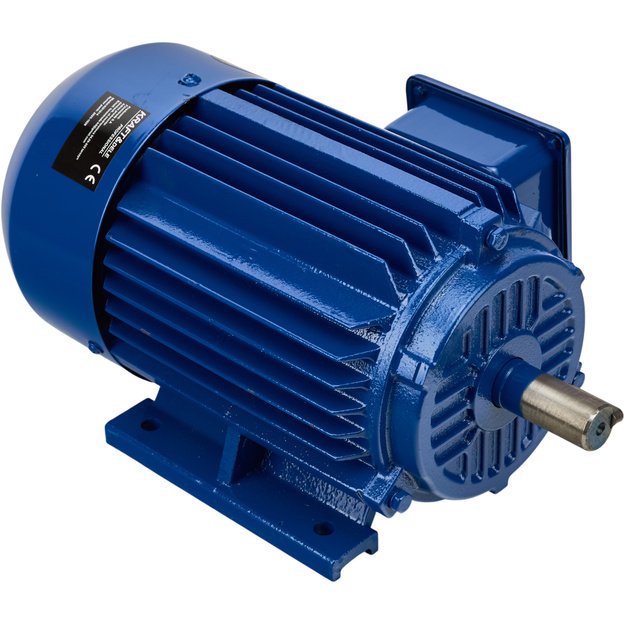

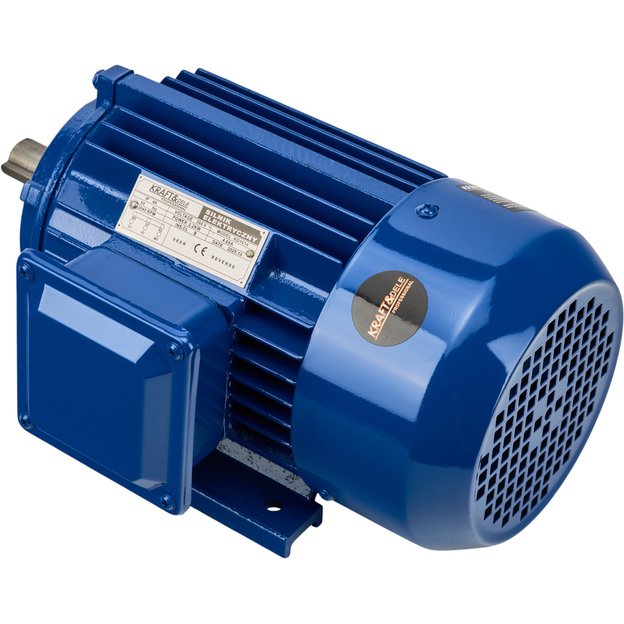

KRAFT&DELE KD1814 three-phase electric motor, 2.2 kW, 380 V, 2840 rpm

Discount -34%
In Warehouse

Product code: KD1814

Available quantity Available

Fast Delivery

Technical specifications

BrandKRAFT&DELE
ModelKD1814
TypeThree-phase electric motor
Supply voltage380 V
Frequency50 Hz
Power2200 W (2.2 kW)
Current4.66 A
Speed2840 rpm
Mounting hole spacing140 × 120 mm
Shaft diameter24 mm
Shaft length45 mm
Key dimensions28 × 7 mm
Weight20.95 kg
€9499 €14399 inc VAT
This item has a discount and you save - €4900
Have any questions about this item? Ask
Manufacturer: Kraftdele

KRAFT&DELE KD1814 is a three-phase electric motor for mechanical drive equipment. Listed power is 2.2 kW, supply is 380 V / 50 Hz and speed is 2840 rpm.

Select the motor to match the driven equipment’s power and speed requirements. When replacing an existing motor, also compare its supply, shaft and mounting arrangement.

Applications and drive selection

The 2.2 kW and 2840 rpm combination suits equipment requiring these drive parameters. For a compressor, pump or machine tool, check the specific mechanism’s requirements before selecting the motor.

Shaft and mounting

This model has a 24 mm shaft diameter and a 45 mm shaft length. Mounting hole spacing is 140 × 120 mm. Match the coupling or pulley and mounting base to the dimensions of this motor and the driven machine.

Supply and supplied equipment

The listed supply voltage is 380 V. Connection and protective-device selection must follow the individual motor’s rating plate and instructions. The product is the KRAFT&DELE KD1814 electric motor; other drive components are not specified as included.
