Product code: KD1813
Available quantity Available
| Brand | KRAFT&DELE |
|---|---|
| Model | KD1813 |
| Type | Three-phase induction motor |
| Supply voltage | 380 V |
| Frequency | 50 Hz |
| Power | 2200 W (2.2 kW) |
| Current | 4.87 A |
| Speed | 1420 rpm |
| Mounting hole spacing | 160 × 140 mm |
| Shaft diameter | 28 mm |
| Shaft length | 55 mm |
| Key dimensions | 40 × 7 mm |
| Manufacturer: | Kraftdele |

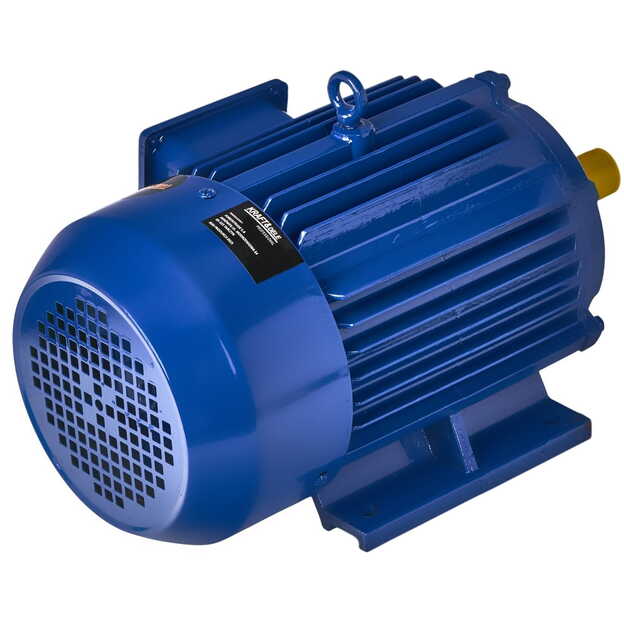

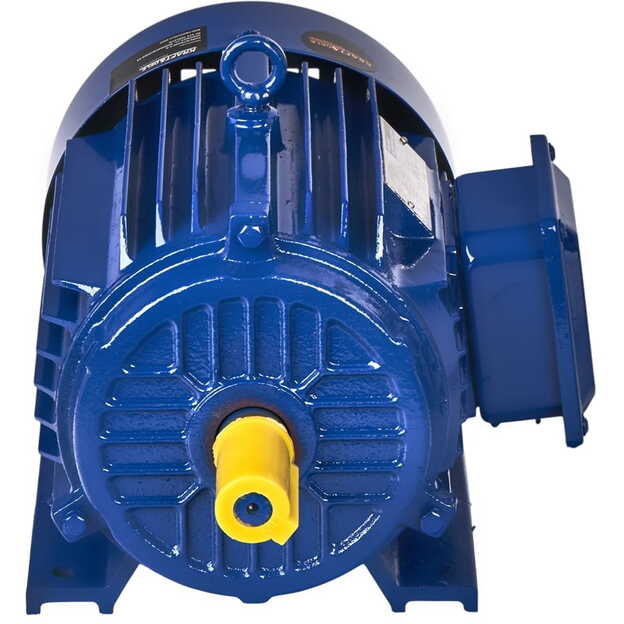

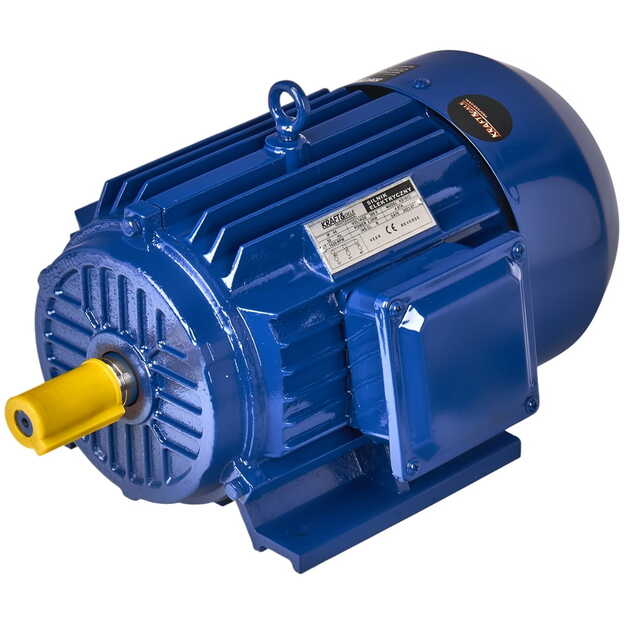

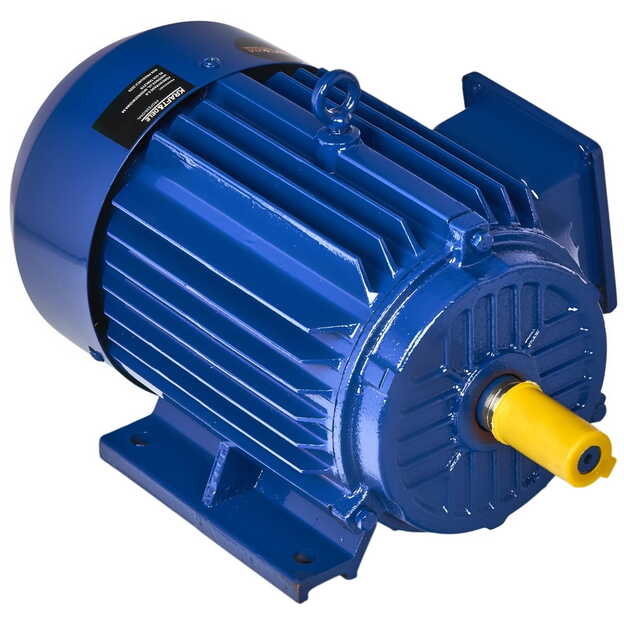

KRAFT&DELE KD1813 is a three-phase electric motor for mechanical drive equipment. Listed power is 2.2 kW, supply is 380 V / 50 Hz and speed is 1420 rpm.
Select the motor to match the driven equipment’s power and speed requirements. When replacing an existing motor, also compare its supply, shaft and mounting arrangement.
The 2.2 kW and 1420 rpm combination suits equipment requiring these drive parameters. For a compressor, pump or machine tool, check the specific mechanism’s requirements before selecting the motor.
This model has a 28 mm shaft diameter and a 55 mm shaft length. Mounting hole spacing is 160 × 140 mm. Match the coupling or pulley and mounting base to the dimensions of this motor and the driven machine.
The listed supply voltage is 380 V. Connection and protective-device selection must follow the individual motor’s rating plate and instructions. The product is the KRAFT&DELE KD1813 electric motor; other drive components are not specified as included.
