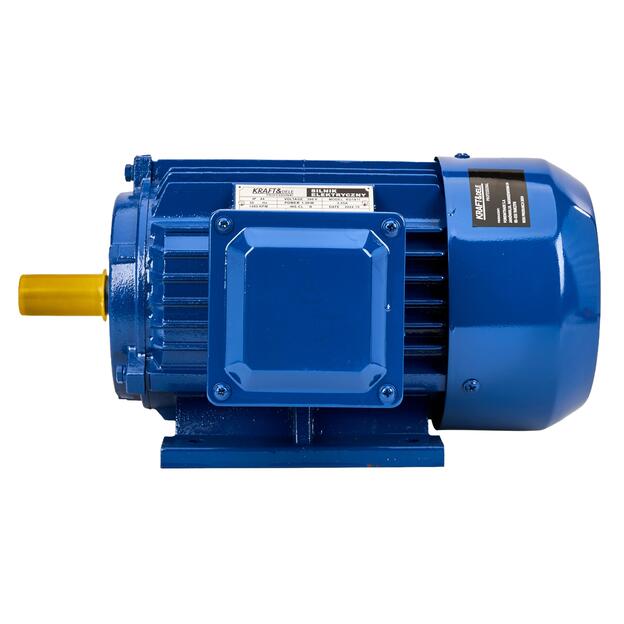

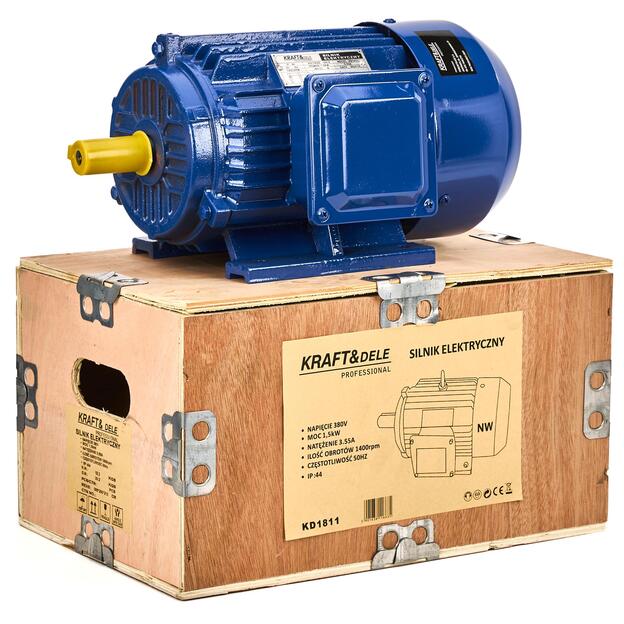

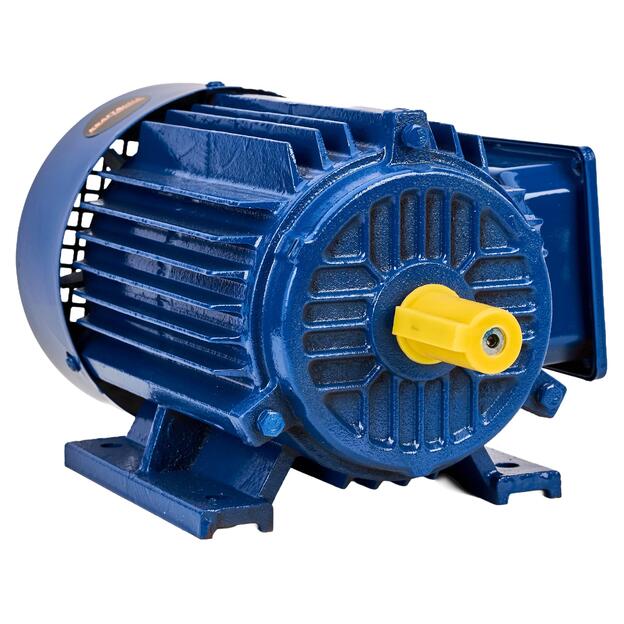

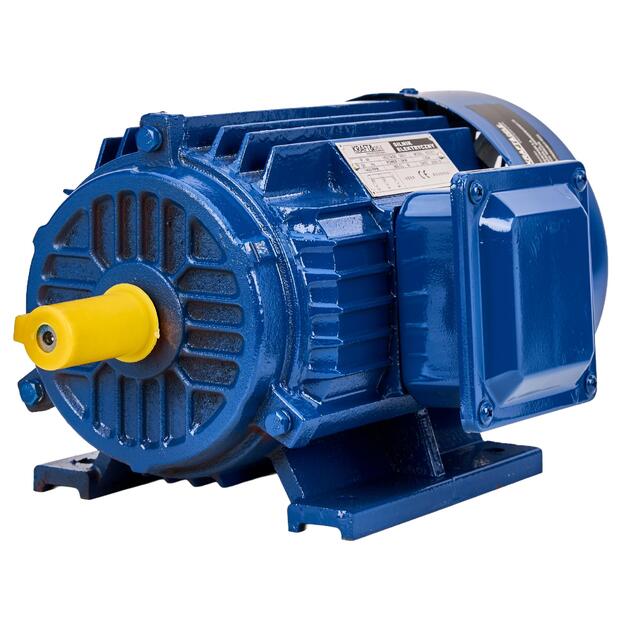

KRAFT&DELE KD1811 three-phase electric motor, 1.5 kW, 380 V, 1400 rpm

Discount -12%
In Warehouse

Product code: KD1811

Available quantity Available

Fast Delivery

Technical specifications

BrandKRAFT&DELE
ModelKD1811
TypeThree-phase electric motor
Supply voltage380 V
Frequency50 Hz
Power1500 W (1.5 kW)
Speed1400 rpm
Current3.55 A
Mounting hole spacing140 × 125 mm
Shaft diameter24 mm
Shaft length45 mm
Key dimensions28 × 7 mm
Weight20.5 kg
€9150 €10400 inc VAT
This item has a discount and you save - €1250
Have any questions about this item? Ask
Manufacturer: Kraftdele

KRAFT&DELE KD1811 is a three-phase electric motor for mechanical drive equipment. Listed power is 1.5 kW, supply is 380 V / 50 Hz and speed is 1400 rpm.

Select the motor to match the driven equipment’s power and speed requirements. When replacing an existing motor, also compare its supply, shaft and mounting arrangement.

Applications and drive selection

The 1.5 kW and 1400 rpm combination suits equipment requiring these drive parameters. For a compressor, pump or machine tool, check the specific mechanism’s requirements before selecting the motor.

Shaft and mounting

This model has a 24 mm shaft diameter and a 45 mm shaft length. Mounting hole spacing is 140 × 125 mm. Match the coupling or pulley and mounting base to the dimensions of this motor and the driven machine.

Supply and supplied equipment

The listed supply voltage is 380 V. Connection and protective-device selection must follow the individual motor’s rating plate and instructions. The product is the KRAFT&DELE KD1811 electric motor; other drive components are not specified as included.
