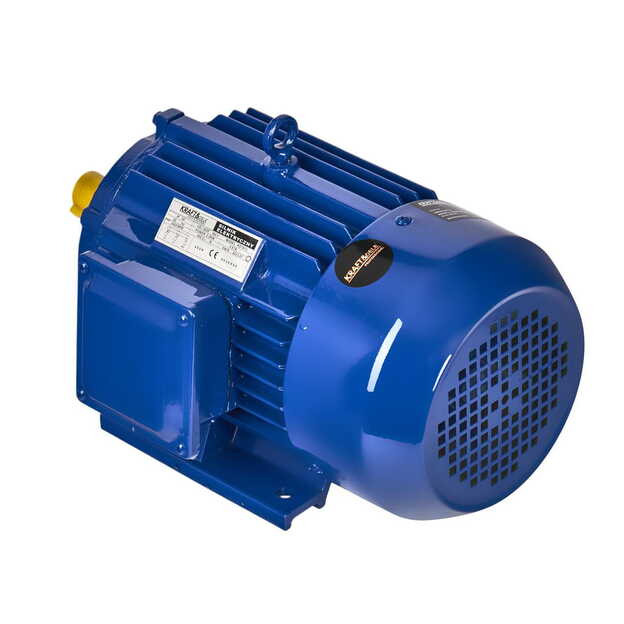

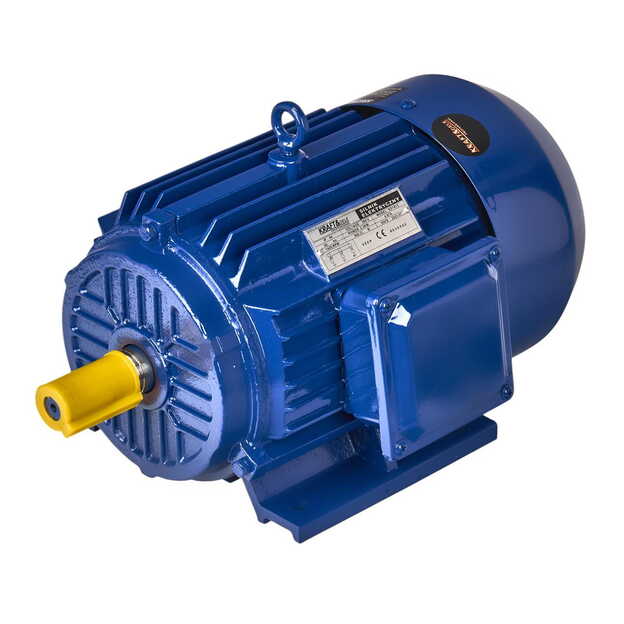

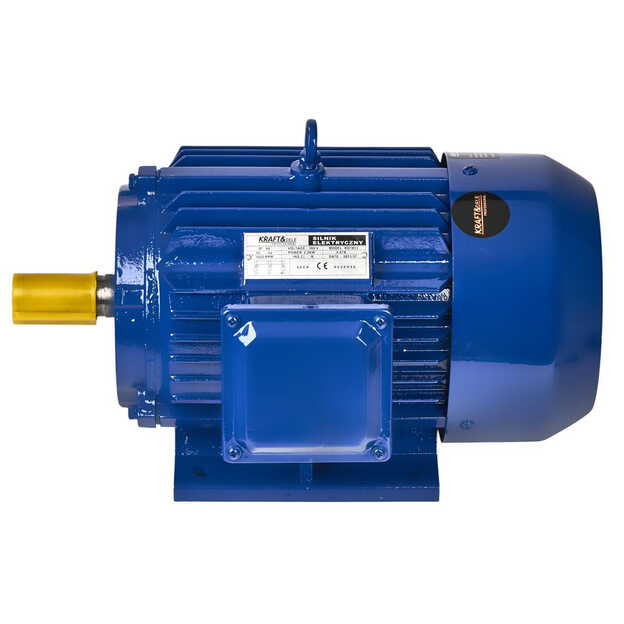

KRAFT&DELE KD1809 three-phase electric motor, 0.75 kW, 380 V, 2730 rpm

Discount -29%
In Warehouse

Product code: KD1809

Available quantity Available

Fast Delivery

Technical specifications

BrandKRAFT&DELE
ModelKD1809
TypeThree-phase electric motor
Supply voltage380 V
Frequency50 Hz
Power0.75 kW
Current1.71 A
Speed2730 rpm
Protection ratingIP44
Mounting hole spacing125 × 100 mm
Shaft diameter19 mm
Shaft length40 mm
Key dimensions20 × 6 mm
Weight13.5 kg
€6799 €9559 inc VAT
This item has a discount and you save - €2760
Have any questions about this item? Ask
Manufacturer: Kraftdele

KRAFT&DELE KD1809 is a three-phase electric motor for mechanical drive equipment. Listed power is 0.75 kW, supply is 380 V / 50 Hz and speed is 2730 rpm.

Select the motor to match the driven equipment’s power and speed requirements. When replacing an existing motor, also compare its supply, shaft and mounting arrangement.

Applications and drive selection

The 0.75 kW and 2730 rpm combination suits equipment requiring these drive parameters. For a compressor, pump or machine tool, check the specific mechanism’s requirements before selecting the motor.

Shaft and mounting

This model has a 19 mm shaft diameter and a 40 mm shaft length. Mounting hole spacing is 125 × 100 mm. Match the coupling or pulley and mounting base to the dimensions of this motor and the driven machine.

Supply and supplied equipment

The listed supply voltage is 380 V. Connection and protective-device selection must follow the individual motor’s rating plate and instructions. The product is the KRAFT&DELE KD1809 electric motor; other drive components are not specified as included.
