Product code: PA800E
Available quantity Available
| Model | PA800E |
|---|---|
| Manufacturer | LOTA Industries |
| Capacity – single line | 400 kg |
| Capacity – double line with pulley | 800 kg |
| Lifting height – single line | 12 m |
| Lifting height – double line | 6 m |
| Lifting speed – single line | 10 m/min |
| Lifting speed – double line | 5 m/min |
| Motor power | 1300 W |
| Power supply | 220 V |
| Listed weight | 17.2 kg |
| Package dimensions | 440 × 170 × 250 mm |
| Manufacturer: | LOTA Industries |

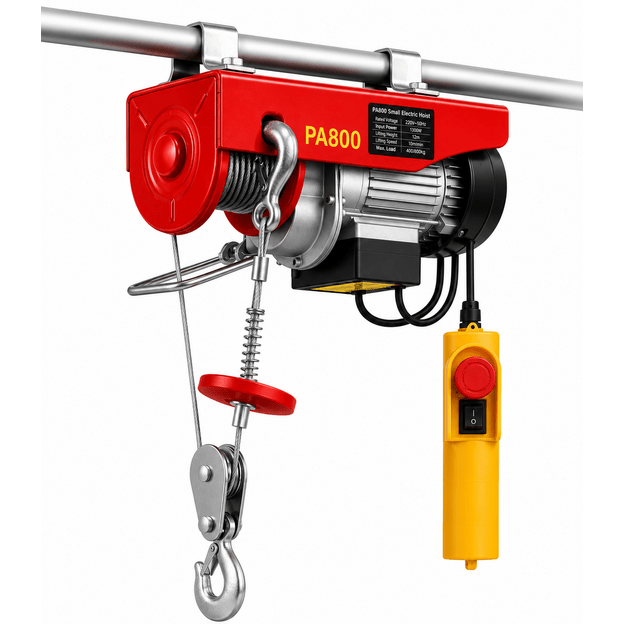

The PA800E is an electric wire rope hoist for raising and lowering loads in a suitably equipped workshop, warehouse or other work area. Single-line capacity is 400 kg; double-line capacity with a pulley block is 800 kg.
Select the 1300 W hoist according to the load and available workspace. The listed single-line lifting height is 12 m, with 6 m in double-line configuration.
Listed lifting speed is 10 m/min with a single line and 5 m/min with a double line. The higher 800 kg capacity requires the correct pulley configuration for this model. Rope length is not the lifting height for every configuration.
Mount only to a structure suitable for the load. Check fixing points, clear rope travel and load clearance.
Lift vertically without side pulling. Inspect the rope, hooks, mountings and stopping functions before use. Follow the rating plate and instructions for operating time and cooling pauses. The hoist is for loads; do not use it to lift people.
