Electric wire rope hoist LOTA Industries PA1000X30, 500/1000 kg

Waiting delivery

Product code: PA1000X30

Available quantity SOLD

The arrival of the goods is scheduled and expected; please inquire for a more precise time!

Technical specifications

Model PA1000X30
Manufacturer LOTA Industries
Capacity – single line 500 kg
Capacity – double line with pulley 1000 kg
Lifting height – single line 30 m
Lifting height – double line 15 m
Lifting speed – single line 10 m/min
Lifting speed – double line 5 m/min
Motor power 1800 W
Power supply 220 V
Package dimensions 55 × 25 × 32 cm
Have any questions about this item? Ask
Manufacturer: LOTA Industries

The PA1000X30 is an electric wire rope hoist for raising and lowering loads in a suitably equipped workshop, warehouse or other work area. Single-line capacity is 500 kg; double-line capacity with a pulley block is 1000 kg.

Select the 1800 W hoist according to the load and available workspace. The listed single-line lifting height is 30 m, with 15 m in double-line configuration.

Rope configuration and lifting speed

Listed lifting speed is 10 m/min with a single line and 5 m/min with a double line. The higher 1000 kg capacity requires the correct pulley configuration for this model. Rope length is not the lifting height for every configuration.

Installation and work area

Mount only to a structure suitable for the load. Check fixing points, clear rope travel and load clearance.

Operation and maintenance

Lift vertically without side pulling. Inspect the rope, hooks, mountings and stopping functions before use. Follow the rating plate and instructions for operating time and cooling pauses. The hoist is for loads; do not use it to lift people.

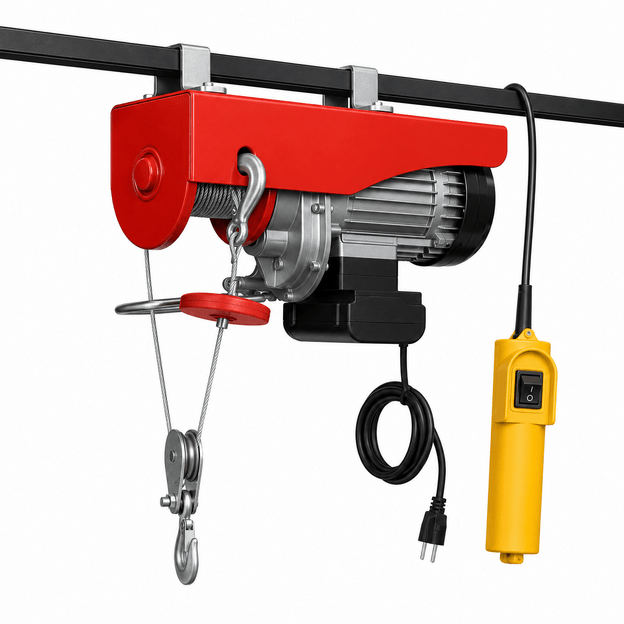

Image for illustration purposes.
