Product code: PA1000+
Available quantity Available
| Model | PA1000+ |
|---|---|
| Manufacturer | LOTA Industries |
| Capacity – single line | 500 kg |
| Capacity – double line with pulley | 1000 kg |
| Lifting height – single line | 12 m |
| Lifting height – double line | 6 m |
| Lifting speed – single line | 10 m/min |
| Lifting speed – double line | 5 m/min |
| Motor power | 1800 W |
| Power supply | 220–230 V |
| Listed beam width | 68–110 mm |
| Listed weight | ~28–29 kg |
| Manufacturer: | LOTA Industries |
The PA1000+ is an electric wire rope hoist for raising and lowering loads in a suitably equipped workshop, warehouse or other work area. Single-line capacity is 500 kg; double-line capacity with a pulley block is 1000 kg.
Select the 1800 W hoist according to the load and available workspace. The listed single-line lifting height is 12 m, with 6 m in double-line configuration.
Listed lifting speed is 10 m/min with a single line and 5 m/min with a double line. The higher 1000 kg capacity requires the correct pulley configuration for this model. Rope length is not the lifting height for every configuration.
A trolley is listed as included. Check the beam profile, trolley adjustment limits and capacity of the complete supporting structure before installation.
Lift vertically without side pulling. Inspect the rope, hooks, mountings and stopping functions before use. Follow the rating plate and instructions for operating time and cooling pauses. The hoist is for loads; do not use it to lift people.
Hoist, control pendant, pulley block, mounting accessories, trolley.

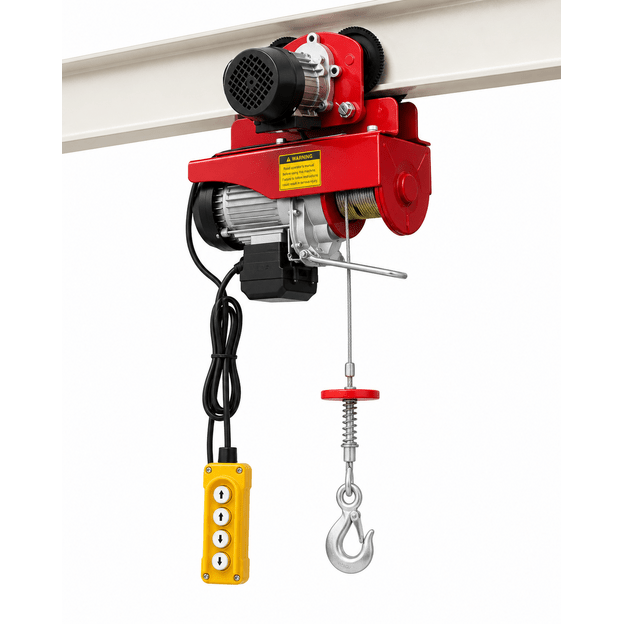

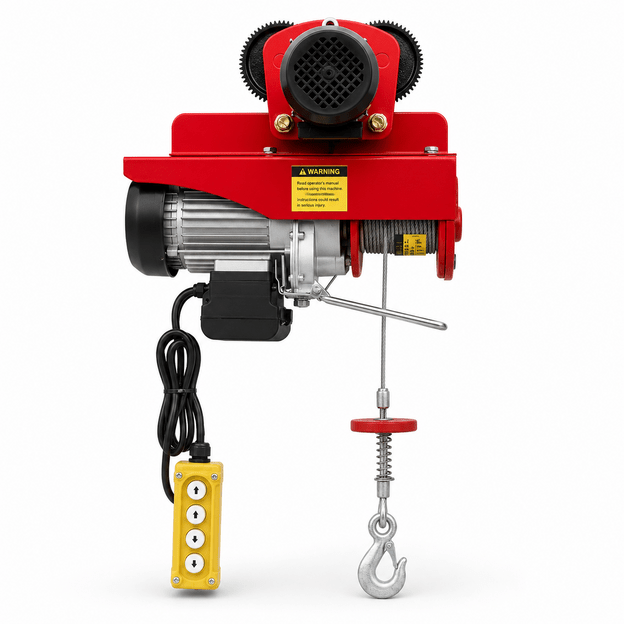

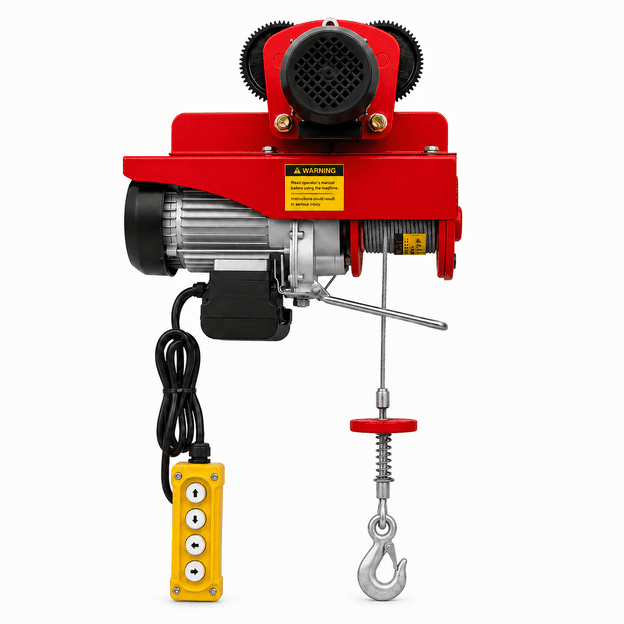

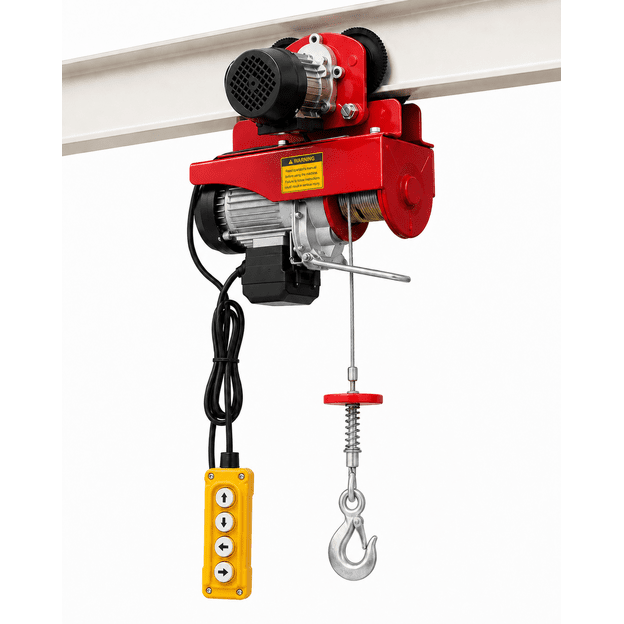

Image for illustration purposes.
