Product code: KD1802
Available quantity Available
| Brand | KRAFT&DELE |
|---|---|
| Model | KD1802 |
| Type | Single-phase electric motor |
| Supply voltage | 220 V |
| Frequency | 50 Hz |
| Power | 2200 W (2.2 kW) |
| Speed | 2800 rpm |
| Current | 13.9 A |
| Mounting hole spacing | 140 × 125 / 100 mm |
| Shaft diameter | 24 mm |
| Shaft length | 45 mm |
| Key dimensions | 28 × 7 mm |
| Manufacturer: | Kraftdele |

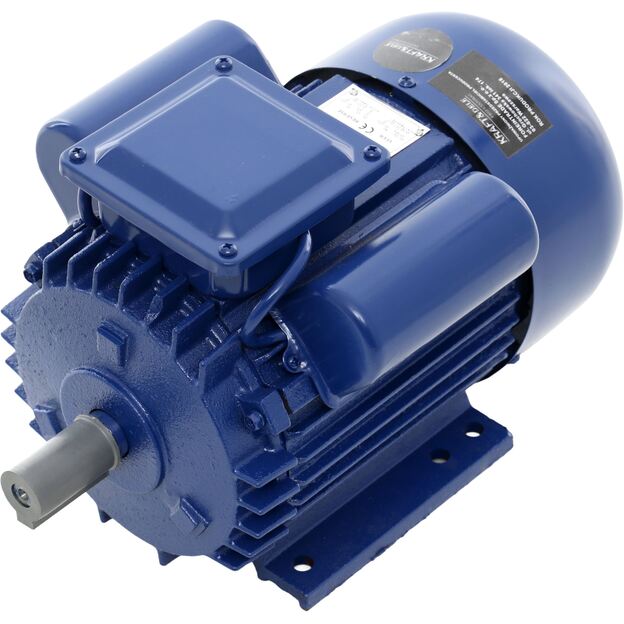

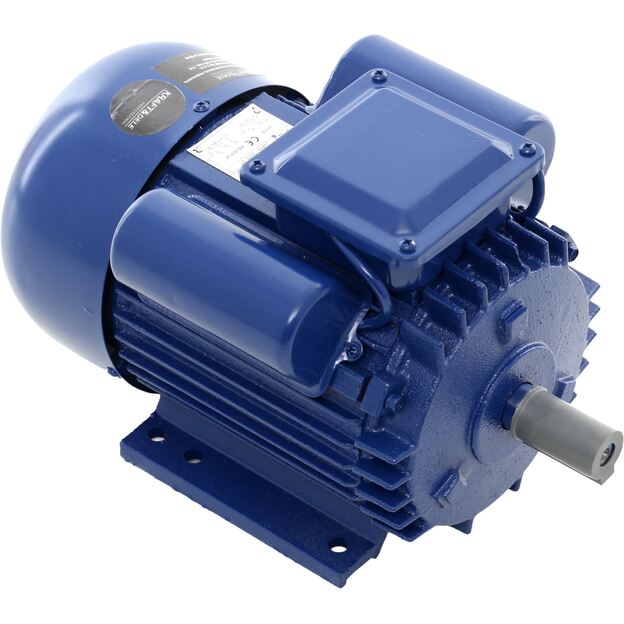

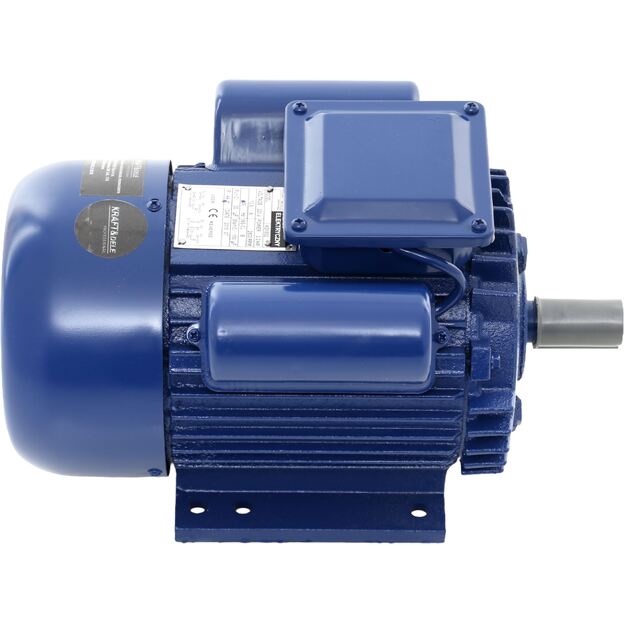

KRAFT&DELE KD1802 is a single-phase electric motor for mechanical drive equipment. Listed power is 2.2 kW, supply is 220 V / 50 Hz and speed is 2800 rpm.
Select the motor to match the driven equipment’s power and speed requirements. When replacing an existing motor, also compare its supply, shaft and mounting arrangement.
The 2.2 kW and 2800 rpm combination suits equipment requiring these drive parameters. For a compressor, pump or machine tool, check the specific mechanism’s requirements before selecting the motor.
This model has a 24 mm shaft diameter and a 45 mm shaft length. Mounting hole spacing is 140 × 125 / 100 mm. Match the coupling or pulley and mounting base to the dimensions of this motor and the driven machine.
The listed supply voltage is 220 V. Connection and protective-device selection must follow the individual motor’s rating plate and instructions. The product is the KRAFT&DELE KD1802 electric motor; other drive components are not specified as included.
