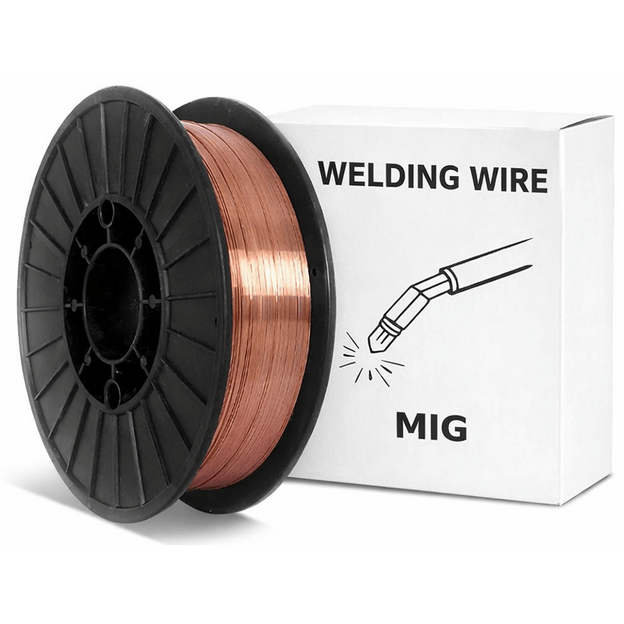

Solid copper coated wire for gas welding on carbonated steel, of non-alloy or low alloy
It has many applications in metal construction, thanks to its excellent mechanical properties
Benefits: Excellent ignition properties, great arc stability on high currents, good wire resistance to corrosion, welding in all positions
Applications: Automotive production, railway construction, shipbuilding, construction, tanks, boilers
Classification: AWS 5.18 : ER 70S-6 EN ISO 14341-A : G46 4 M21 3Si1 / G 42 3 C1 3Si1 DIN 8559 : SG2
Polarity DC +
Chemical properties: C 0.087 % Mn 1.66 % Si 0.92 % S 0.015 % P 0.017 % Cu 0.30 % Cr 0.077 % Ni 0.16 % Mo 0.11 % V 0.002 % Al 0.008 %
Mechanical properties Re 469 Mpa Rm 582 Mpa A 5 d 26 % KV -30° C 81 J
Recommendations: wire Ø 0.8 mm thickness < 5 mm voltage 16 ► 28 V current 60 ► 200 A
Gas protection in compliance with EN ISO 14175 100% CO2 (C1) or Argon / CO2 (M21, 8 < 20% CO2)
| Specification | |
|---|---|
| Manufacturer | WOERDE |
