Product code: 8751180
Available quantity Available
Article No:. 87 51 180
EAN: 4003773088981
DIN ISO 8976
Particularly good access to the workpiece due to very slim construction of head and joint area

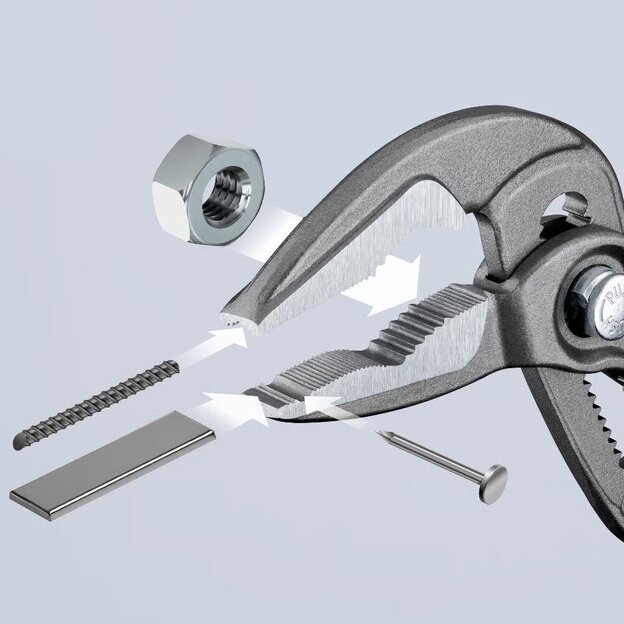

Long, narrow jaws with front gripping serration: longitudinal gripping profile for round parts such as screws and bolts
Ideal for service, maintenance and equipment repair, in automotive and general industry
Firm grip also on flat material due to three-point rest
Cross groove for holding slender round materials such as nails
Fine adjustment for optimum adaptation of the gripping capacity and ergonomic grip position
Push the button for adjustment on the workpiece

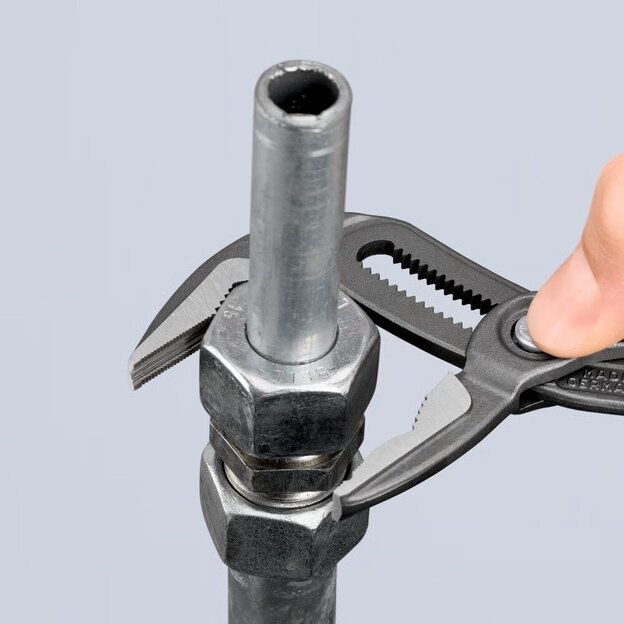

Self-clamping on pipes and nuts: no slipping on the workpiece, effortless working
Box-joint design for high stability due to double guide
Reliable catching of the hinge bolt: no unintentional shifting
Pinch guard prevents operators' fingers being pinched
Fine adjustment for optimum adaptation of the gripping capacity up to width across flats of 32 and pipes up to ⌀ 32 mm
Adjustment positions 19
Capacities for nuts 34 mm
Capacities for nuts Ø 1 1/4 Inch
Capacities for pipes Ø 32 mm
Max. parallel opening width 37 mm
Max. gripping depth 42 mm
Dimensions 180 x 42 x 14 mm
Weight 0.176 kg
< iframe width=" 560" height=" 315" src=" https://www.youtube.com/embed/Qc4AG5LmgKk?si=d4z8dExNevy8Eix0" title=" YouTube video player" frameborder=" 0" allow=" accelerometer autoplay clipboard-write encrypted-media gyroscope picture-in-picture web-share" referrerpolicy=" strict-origin-when-cross-origin" allowfullscreen> < /iframe>
| Specification | |
|---|---|
| Manufacturer | KNIPEX |
