Product code: PL402DA380V
Available quantity Available
Capacity 4.0 t
Mechanical safety release with synchronization at the top (" Clear floor" )
Lifting height 1930(+30) mm
Min height 100(+30) mm
Short bent arm length 830 - 1260 mm (2 stages)
Long straight arm length 700 - 1310 mm (3 stages)
Rubber pads are inserted and screwed (there is the possibility to use long sleeve)

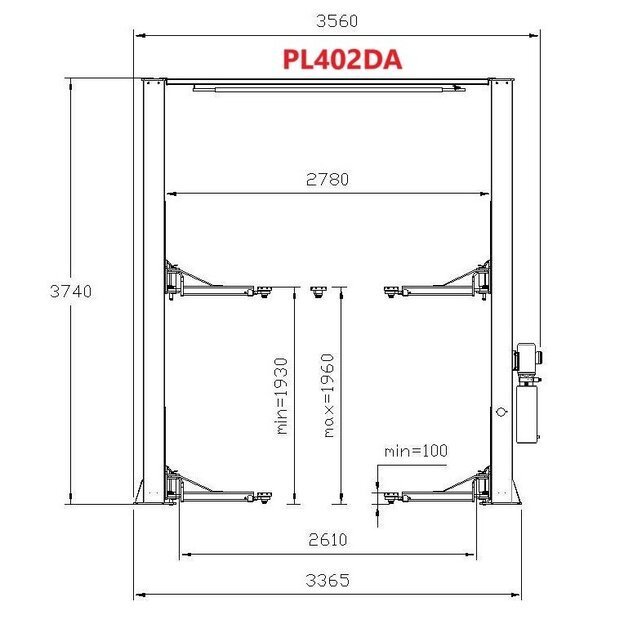

Frame height x width 3740 x 2780 mm
Rise / drop time 45 / 22 s
Motor power 2.2 kW
Oil capacity 10 l
Weight 655 kg
CE conformity
12 month warranty
| Specification | |
|---|---|
| Manufacturer | PULI |
